MU by Chan

MU TKL Tenkeyless Mechanical Keyboard

MU TKL Tenkeyless Mechanical Keyboard

Regular price $240.00 USD
Regular price Sale price $240.00 USD
Sale Sold out
Kit
View full details

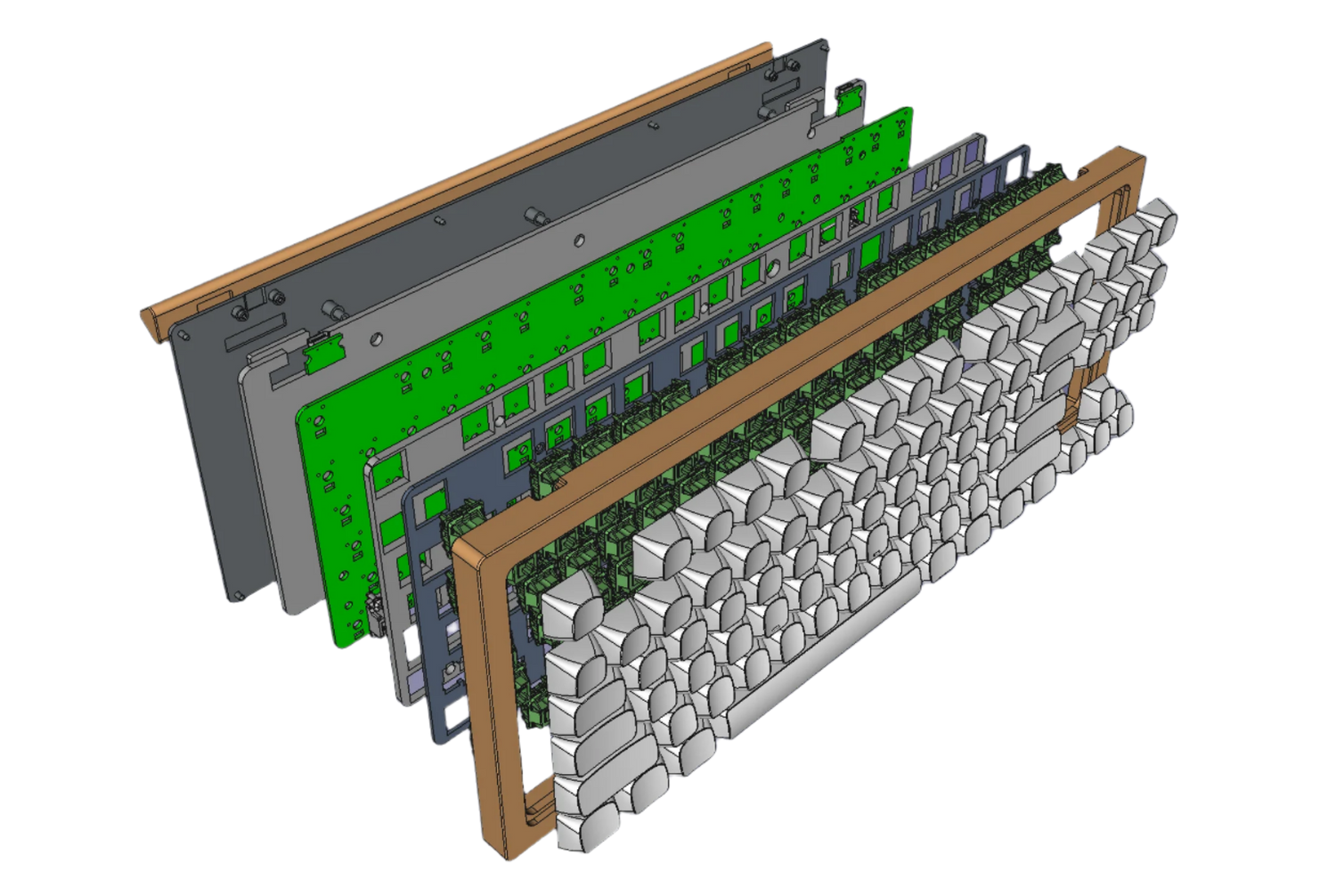

Maintain a timeless yet personalised look via interchangeable wood elements - the wood frame, as well as the magnetic risers that are available in 2 different heights. Internally, 2 layers of foam dampen the keystrokes for a smoother and quieter effect, and factory-lubed Huano Matcha Latte V2 switches provide unmatched stability and satisfying acoustics.

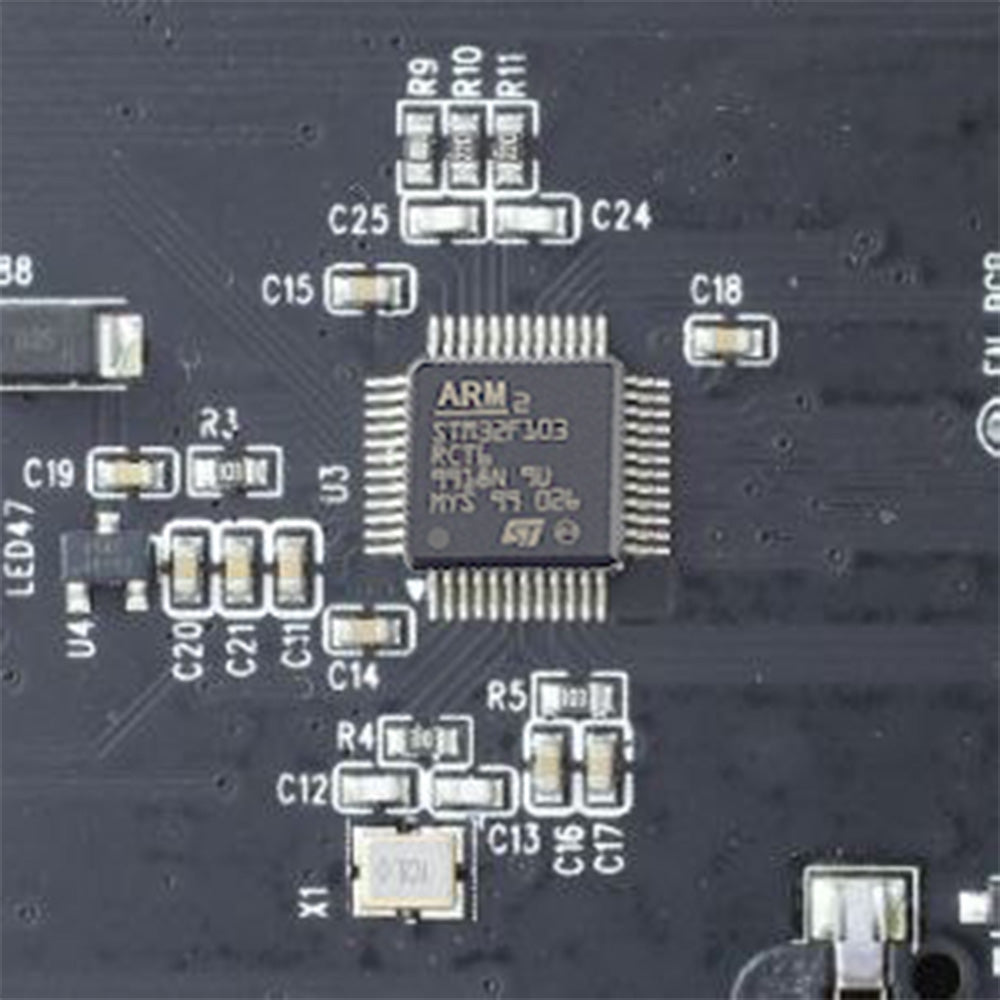

Equipped with an STM32 for reliable QMK performance, the MU TKL provides responsive and customisable control with a robust firmware platform.

The keyboard is also VIA compatible, allowing limitless potential to fully personalise your board.

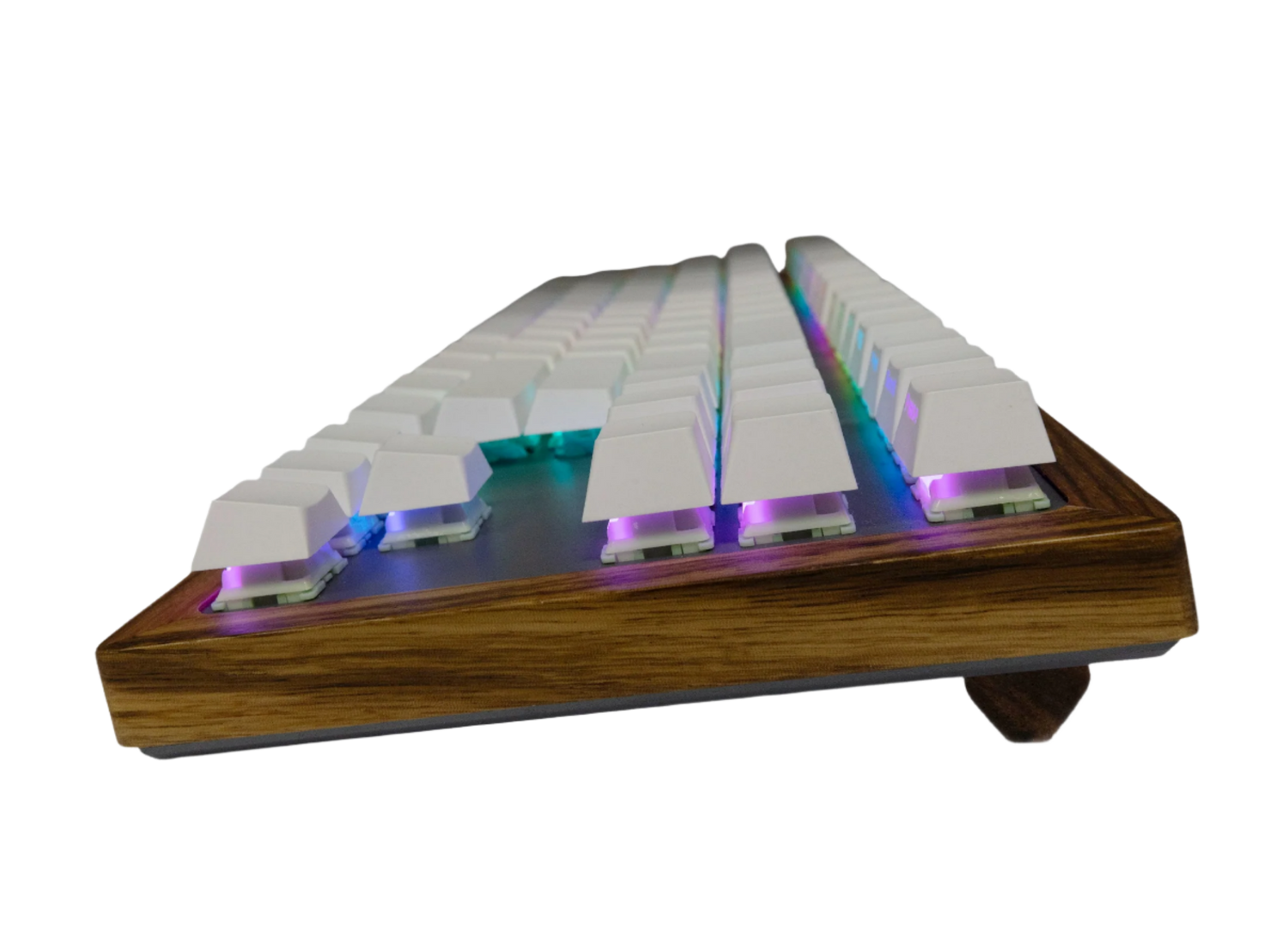

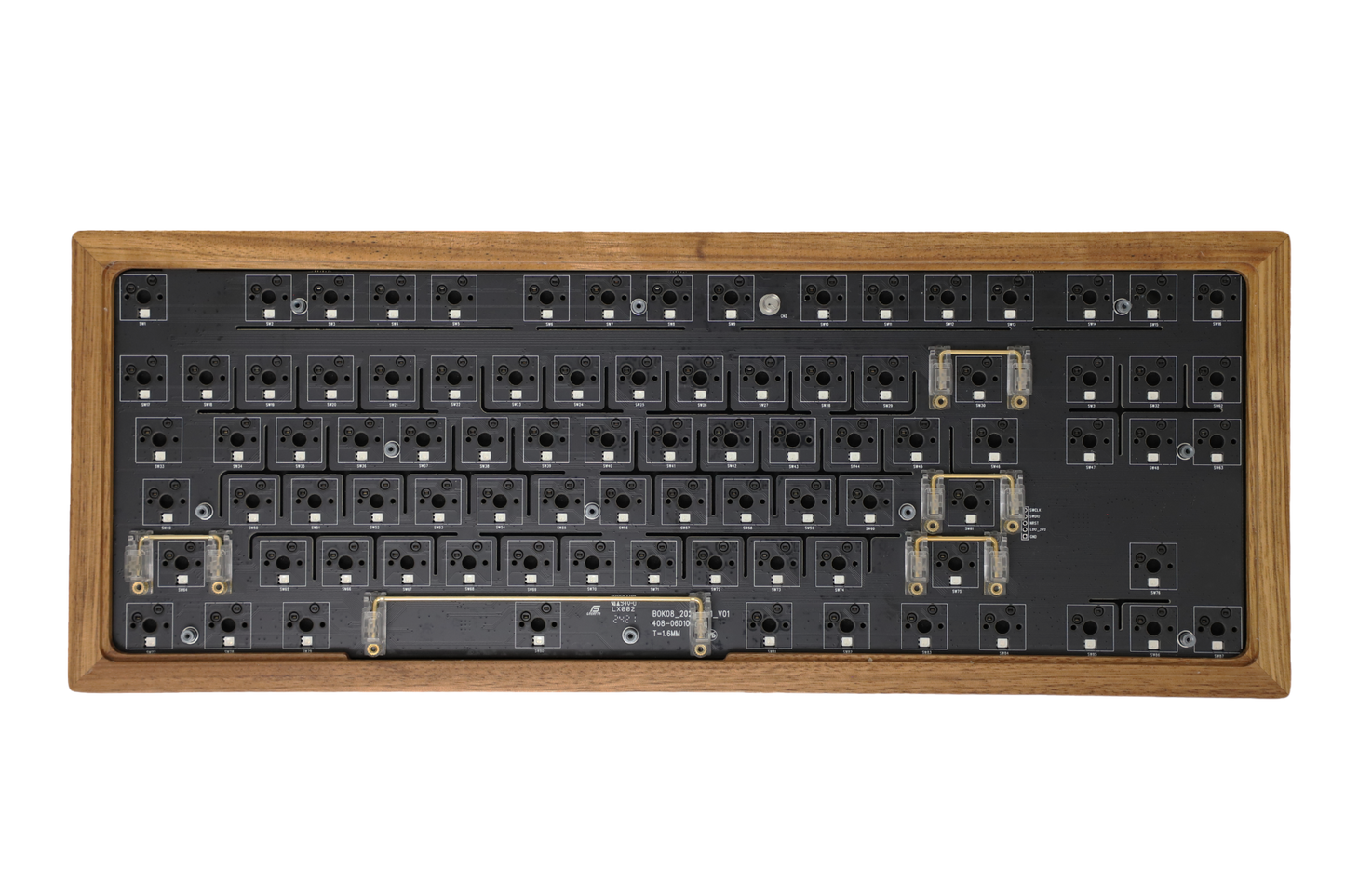

LEDs are mounted south-facing to accommodate every keycap profile. The MU TKL is also designed to support 5-pin switches, ensuring ultimate stability. Plus, the board also supports plate-mounted stabilisers.

All you need to know

Details

Keyboard

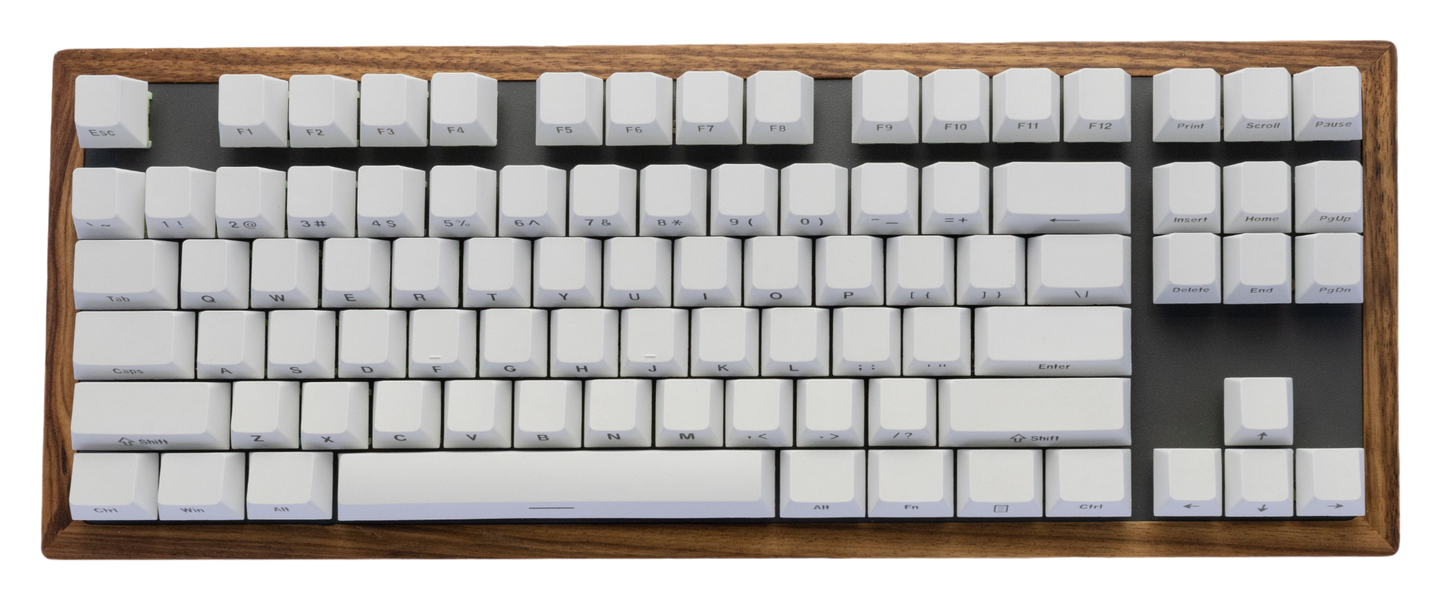

  • TKL keyboard with 87 keys
  • 5-pin hot-swappable switch support
  • CNC-machined aluminium base
  • QMK/VIA firmware capable

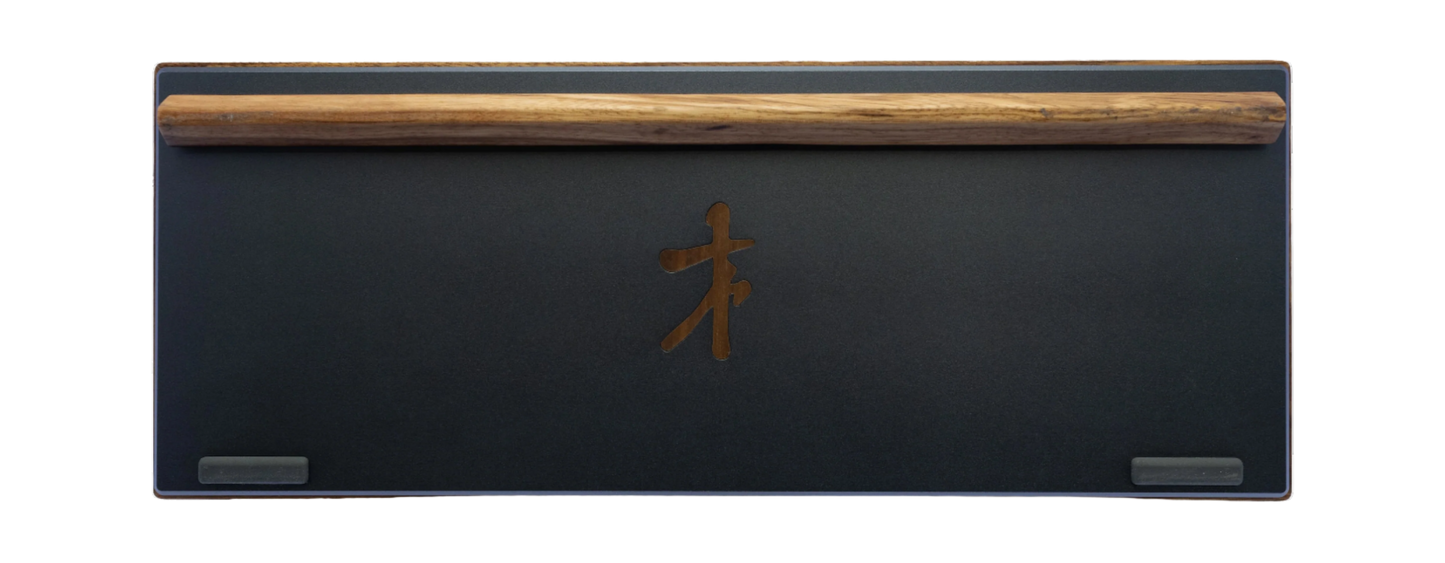

  • Magnetically attached wooden riser

Switches (for full kit)
Huano Matcha Latte V2 Switches

  • Type: Linear
  • Actuation force: 45g
  • Total travel: 3.6mm
  • Top Housing: POK
  • Bottom Housing: Nylon
  • Factory lubed

Keycaps
Side-printed shine through double shot PBT Keycaps

  • Profile: OEM

Technical Specifications

Switch Type: 5-Pin Hotswap; South-Facing LEDs

Layout: Tenkeyless (87 keys)

Connectivity: Wired, USB-C

Lighting: Per key LED backlighting

Colour: Zebra wood with gray aluminium base

Software: QMK/VIA capable

Max Polling Rate: 1000 Hz

OS Support: Windows, macOS, Linux

Mounting Style: Top plate mounted

Dimensions: 332 x 134.8 x 32 mm (13” x 5.3” x 1.3”)

Weight: 1.3kg

Angle: 4° or 7° (depending on attached riser)

Stabilisers: Screw in (pre-lubed)

What's in the box

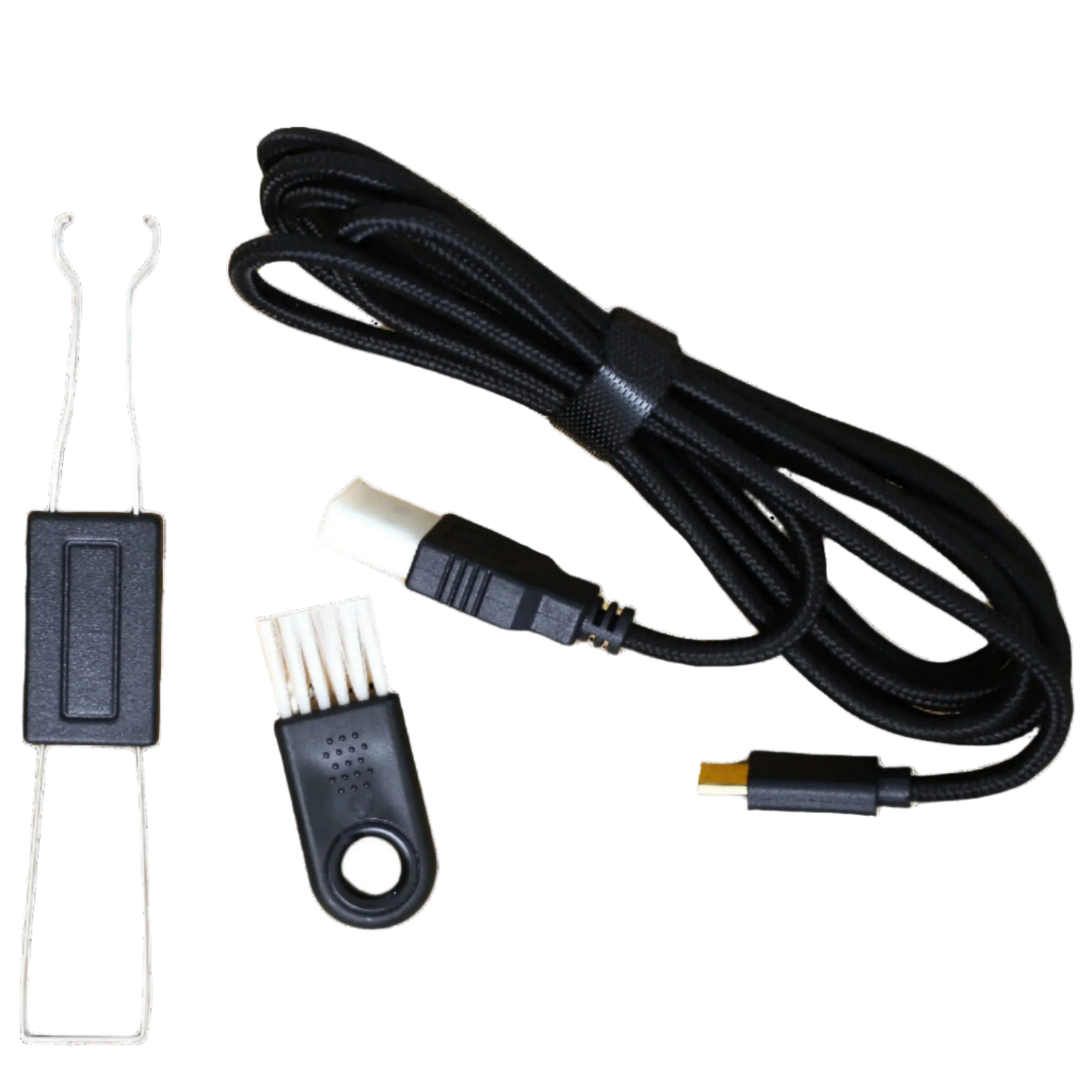

  • MU TKL Keyboard (Barebones/Full kit)
  • Switch/Keycap puller
  • USB Cable
